Unit readout
Contourist
Noise Lab

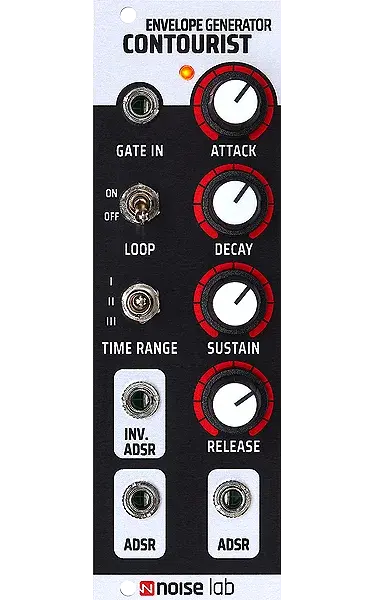

Photo: Noise Lab
A general purpose envelope generator with three outputs and three different time settings.
Specs
| Maker | Noise Lab |
|---|---|
| Device kind | Eurorack module |
| Function type | Envelope |
| Width | 8 HP |
| Depth | 26 mm |
| +12V current | 20 mA |
| -12V current | 5 mA |
| Inputs | Gate input (+5 V gate) |
| Outputs | Three outputs: 0 to +10 V, inverted +10 to 0 V |
Inputs and outputs
Inputs
- Gate input (+5 V gate)unspecified
Outputs
- Three outputs: 0 to +10 V, inverted +10 to 0 Vunspecified
Signal types are shown only when the catalog source named them.
